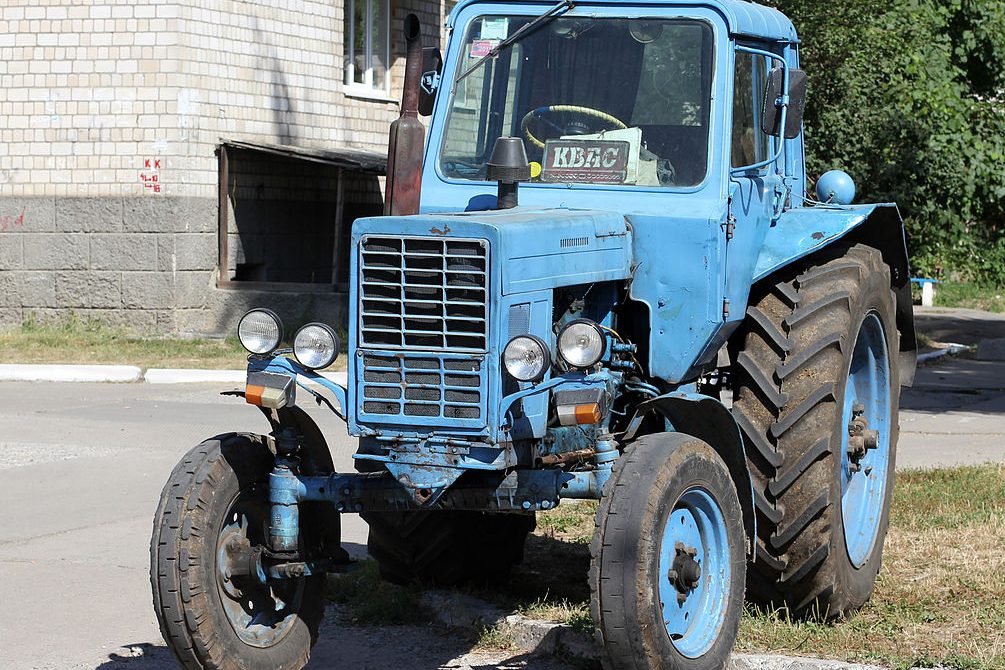

Very popular and mass soviet MTZ-80 tractor
In 1975 came into production in 1972, presented in a more efficient, direct injection with MTZ-80/82. It was the 1000 round of the PTO, which was coupled with the key under the tractor. The gearbox was a mechanical gear change, which doubled the gears 18 + 4 and gave a road speed of 33 km / h. The differential lock is automatically released from the wheels turning. Hydraulic outlets was standard as many as three.
In the autumn of 1977 the flight was changed Rural machine manufacturing and control hydrostatic changed. Ad text according to the good visibility, light control, warm in the winter and in the summer the fresh job together judiciously placed controls were characterized by antavin feature Belaruksessa. In particular, controls the investment can be many views. At least the steering wheel position changed considerably for the better. New was also white in color. 505/525: een turbos installed in Finland, when to power-up of 75 hp.
| Specifications | MTZ-80/82 |
|---|---|
| Years | 75-77 |
| Engine model | D240 |
| Cyl/Turbo/Intercooler | 4 |
| Displacement | 4750 |
| Bore x stroke mm | 110×125 |
| Max. power hp DIN/rpm | 80/2200 |
| Torque Nm DIN/rpm | 268/1000 |
| Gears | 18+4 |
| Synchronized gears | – |
| Quick-change gear | mek. |
| Reverser | – |
| Speeds in km/h | 1,9-33,4 |
| Max. speed km/h | |
| Hydr. flow l/min | 50 |
| Hydr. pressure bar | 145 |
| Lift controls | mek. |
| Lift capacity kg | 2000 |
| PTO speeds | 540/1000/ajo |
| Brakes (levy=disc) | levyj. |
| Steering | tehostettu |
| Turning circle m 2WD | |
| Turning circle m 4WD |
