Fork Lift

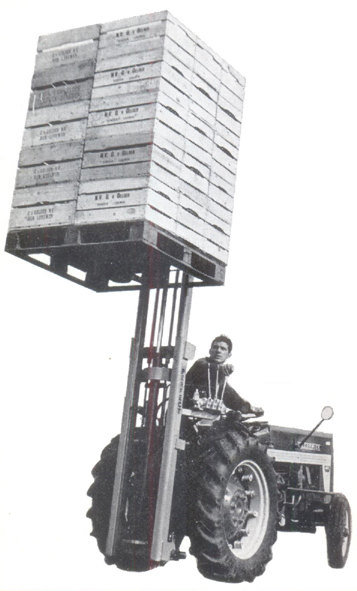

A “PERFECT” tractor fork lift is the answer to your problems in connection with transport, stacking, storage. handling etc.

For

• Fruitculture

• Agriculture & Horticulture

• Industry

  750-2100 kg
  185 -290 cm (GW » 9`6″)

Some advantages of the “PERFECT” tractor fork lift

• Sturdy construction.
• Quick and easy mounting to all tractors (including Vineyards).
• Simple in use. All operations are controlled from the tractor.
• Folding forks, adjustable in width from 10-90 cm (4″-36″). Length of forks 90-108 cm (36″-43”).
• Available with tilt, side-shift and hydraulic box clamp, according to needs.
• Minimum maintenance. All grease points are fitted with sealed ball

HOIST RAM
Plunger hard chrome finish. The ram is desi ned as a single or as a double acting ram. On models HN and HNS the hoist ram is always double acting.

TILT
Double acting tilt ram sim-plifies the operation of picking up and stacking, and increases stability during load transportation by bringing the load centre closer to the rear axle ot the tractor.

SIDE-SHIFT

• Double acting side-shift ram enables the operator to stack faster by eliminating the necessity of tractor movement to the left or right.
  Two different kinds of side shift are available:
• S’M: mast side-shift – the entire machine moves 13 ½ Cm = 5 3/8’’).
• S’W carriage slide-shift – on’ly the carriage moves (20 cm = 8″).
• ln such case the forks are positioned 60 cm (24″) c.t.c. and they are not adjustable in width

MODEL	D-180-H D-180-HN D-180-HNS	D-180-H D-180-HN D-180-HNS	220-H 220-HN 220-HNS	270-H 270-HN 270-HNS	P-220-H P-220-HN P-220-HNS	P-270-H P-270-HN P-270-HNS	R-220-H R-220-HN R-220-HNS	R-270-H R-270-HN R-270-HNS
lift Capafliliy at 50 Cm (20″)	15 cwt. 750 kg	23 cwt. 1 1 50 kg	23 cwt. 1 1 50 kg	23 cwt. 1 1 50 kg	32 cwt. 1600 kg	32 cwt. 1600 kg	42 cwt. 2100 kg	42 cwt. 2100 kg
Lift height	6’1’’ 185 cm	6’5’’ 195 cm	7’9’’ 235 cm	9’6” 290 cm	7’9’’ 235 cm	9’6” 290 cm	7’9’’ 235 cm	9’6” 290 cm
Mounting to tractor	to the 3-point linkage	3-point or tactor bracket	3-point or tactor bracket	3-point or tactor bracket	tactor bracket	tactor bracket	tactor bracket	tactor bracket
Height retracted	4’11’’ 150 cm	5’8 ‘’_ 5’10’’ 173-178 cm	6’4 ‘’_ 6’6″ 192-197 cm	7’3’’ _ 7’5’’ 220-225 cm	6’4’’ 192 cm	7’3’’ 220 cm	6’4’’ 192 cm	7’3’’ 220 cm
Load guard	3’0″ X 4’1″ 90x125cm	3’0″ X 4’11” 90x150cm	3’0″ X 4’11” 90x150cm	3’0″ X 4’11” 90x150cm	3’7″ X 4’11” 108×150	3’7″ X 4’11” 108×150	3’7″ X 4’11” 108×150	3’7″ X 4’11” 108×150
Length of forks	3’0″ 90 cm	3/7″ 108 cm	3/7″ 108 cm	3/7″ 108 cm	3/7″ 108 cm	3/7″ 108 cm	3/7″ 108 cm	3/7″ 108 cm
Trailer hitch	_	detachable	detachable	detachable	detachable	detachable	detachable	detachable
Weight	365 lbs.	805 lbs.	860 lbs.	915 lbs.	945 lbs.	1015 lbs.	990 lbs.	1060 lbs.
(H)	165 kg	365 kg	390 kg	415 kg	430 kg	460 kg	450 kg	480 kg
Lift System	telescope	telescope	telescope	telescope	telescope	telescope	telescope	telescope

Details on models with increased lift height up to 340 cm = 11’2″ are available on application.

BOX CLAMP

The hydraulic box clamp holds the load during transport on rough terrains. This optional is specially recommended for fruit and vegetable growers. We reserve the right to change the specification or to modify the design without prior notice.
